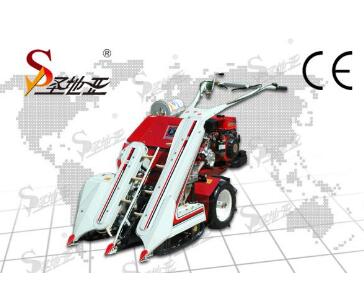

Reaper Binder, Japan Technology, Mitsubishi Engine, Model 4kun-50 Reaper & Binder
Reaper Binder, Japan Technology, Mitsubishi Engine, Model 4kun-50 Reaper & Binder Basic Info.
Application:Rice, Wheat, Straw
Reaper Power Source:Gasoline
Drive Type:Gear Drive
Reaper Portable Harvester Type:Side Hanging Type
Certification:QS, ISO9001:2008, CE
Reaper Binder, Japan Technology, Mitsubishi Engine, Model 4kun-50 Reaper & Binder Main Features
1. Optimized threshing and cleaning mechanism with double shakers for re-threshing.
2. Great transmission and torque and swerve agilely.
3. Capacious grain tank with optional unloading devices.
4. This type of harvester growls like a lawnmower, and it's not far off in size. The harvester is pushed by hand through the row.
5. The powerful MITSUBISHI 6HP gasoline engine is easy to starting, and with low noise, and reliable for easy working.
6. The steer control handlebar can be freely adjusted to up, down, left, or right. There are 16 shift for being adjusted to left and right. The handlebar can be 360° Rotating.
7. During working in sloping fields or height limited garden, there are 5 shift for the Reaper-binder 4KUN-50 to be adjusted to fit for different farmer's height.
8. It is very economical, efficient, practical, light weight, flexible easy operation.
Reaper Binder, Japan Technology, Mitsubishi Engine, Model 4kun-50 Reaper & Binder Technical Specifications
|Model||4KUN-50 Reaper & Binder|
|Overall sizes(L*W*H) (mm)||2050x800x1055|
|Matched motor||Mitsubishi GT600|
|Rated Power (kw)||4.05|
|Rated rotor speed (r/min)||1800|
|Main transmission||Belt and transmission shaft|
|Clutch type||Up tight wheel|
|Drive wheel type||Rubber wheel 19-90-8|
|Rotate balde q'ty (pc)||9|
|Cutting height (mm)||≥80~150 Adjustable|
|Diameter of bale (mm)||≥100|
|Connect type with rotate blade||directly|
|Binding height (mm)||270|
|Working rows (row)||2|
|Working width (mm)||600|
|Working efficiency (km/h.)||1.4~3.8|
|Pure Productivity (hm2/h.)||more than0.12|
|Packing Size (mm)||1810*790*1150|
|20GP Container||20 sets|
