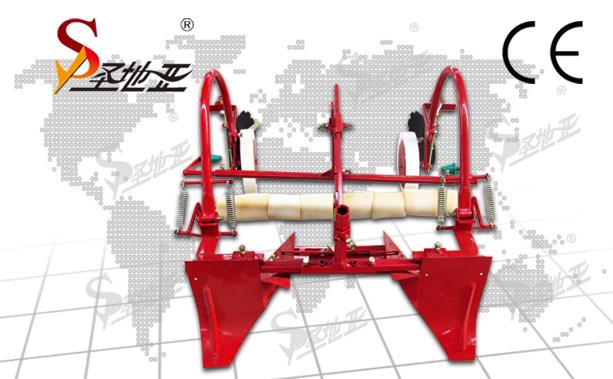

Joint Tillage Machine/Once-Over Tillage Machine (1LZ Series)
Joint Tillage Machine/Once-Over Tillage Machine (1LZ Series) Basic Info.
Model NO.:1LZ Series
Tillage Machinery Specification:ISO 9001: 2000
Origin:China
HS Code:8432809000
Joint Tillage Machine/Once-Over Tillage Machine (1LZ Series) Product Description
Working width: 3.6-7.2m
Tillage Machinery Working depth: 140mm
Matched tractor power: 65HP-200HP
Tillage Machinery Productivity: 2-5ha/h
The Once-over tillage machine can complete the pulverizer, soil transporting, soil mixing, leveling before sowing, repression, and can be directly prepared flat seedbed, they can improve the efficacy, reduce the cost. After stubble ploughing, the organic soil quality contents rise, soil structure improves, the yield improves.
The machine is suitable for growing out robust crop, and the same time you can Obtain greater benefits, All of these can be achieved depends on 1LZ series joint tillage machine, Working width from 3.6m to 7.2m, it can be content with different customer's requirement.
| Model | Unit | 1LZ-3.6 | 1LZ-4.2 | 1LZ-5.4 | 1LZ-7.2 | |
| Max width | m | 3.6 | 4.2 | 5.4 | 7.2 | |
| Working depth | mm | 140 | ||||
| Dia. of disc | mm | 460 | ||||
| Blade spacing | mm | 170 | ||||
| Harrow group angle | 3, 6, 9, 11, 13 | |||||
| Operating speed | km/h | 7~9 | ||||
| Productivity | ha/h | 2.28 | 2.66 | 3.33 | 4.44 | |
| Transport clearance | mm | > 280 | ||||
| Matched power | HP | > 65 | > 80 | > 100 | > 120 | |
| Overall dimension | cm | 660× 380× 100 | 660× 440× 100 | 660× 560× 100 | 700× 750× 100 | |
