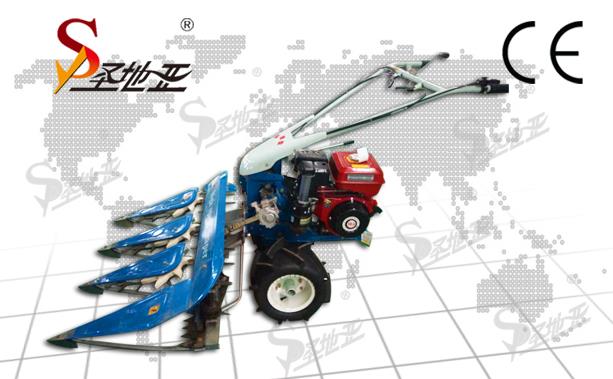

4gl150 Wheat and Rice Harvester Head
4gl150 Wheat and Rice Harvester Head Basic Info
Model NO.: 4GL150
Reaper Application: Rice, Wheat, Straw
Harvest method: Cutting
Transmission: Hard Shaft
Certification: SGS, ISO9001:2008, CE
Condition: New
Reaper Origin: China
Type: Standing-Typed
Power Source: Mini Tiller or Self Propelled Tractor
Drive Type: Gear Drive
Portable Harvester Type: Side Hanging Type
Reaper Color: Red
Application Field: Agriculture, Livestock, Aquaculture, Forestry
Reaper Specification: 1000× 2050× 570
HS Code: 8433599090
4gl150 Wheat and Rice Harvester Head Product Description
4gl150 Wheat and Rice Harvester Head Details:
Model NO.: 4GL150 Type: Hand-Type Harvester
Application: Rice, Wheat, Soybean, Straw Power Source: Mini Tiller or Self Propelled Tractor
Harvest method:Standing-Typed Drive Type: Gear Drive
Transmission: Hard Shaft Portable Harvester Type: Side Hanging Type
Certification: ISO9001:2008, CE Color: Red
Condition: New HS Code: 8433599090
Cutting Width(Mm): 1500 Placing Type: Sidewise&Banded Placed
Procuctivity(M2/Hour): 2300-3000 Cutting Device: Reciprocating Knife Bar
Net Weight(Kg): 110 Gross Weight: 100
Packing Size(L*W*H): 1.8*0.75*0.65 Origin: China
Application Field: Agriculture, Livestock, Aquaculture, Forestry
Matched Power: Mini Tiller and Self Propelled Tractor
4gl150 Wheat and Rice Harvester Head Main Technical Specifications:
| Item | Index |
| Model | 4 G L150 |
| Type of Cutting Table | Standing-Typed |
| Cutting Width (mm) | 1500 |
| Min Cutting Height (mm) | ≥30~50 |
| Placing Type | Sidewise & Banded Placed |
| Productivity (M2) | 2300-3000 |
| Overall Dimensions (mm) (L*W*H) | 1000*2050*570 |
| Total Weight (Kg) | Around 110 |
| Matched Power (kw) | 6<4.5horsepower> |
| Teeth Space (mm) | 127 |
| Running Speed of Crank (r/min) | 550 |
| Diameter of Star Wheel (mm) | 280 |
| Working Speed (km/h) | 2.6~3.6 |
| Chain Speed (m/s) | 2.24 |
| Number of Operator | 1 |
