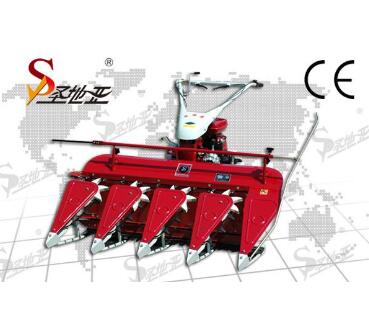

Self-propelled Reaper and Binder Combine Harvester

Self-propelled Reaper and Binder Combine Harvester Product Details

Key Specifications/Special Features:

  • The machine is mountainous, hilly area of wheat, rice harvesting and bundling machine

  • Cutting width 50cm, height of cut 8-10cm (adjustable), with differential steering, the portability and flexibility

  • Specifications:

  1. No unit

  2. Structure/walking self-propelled

  3. Dimensions (length x width x height): 2,050x800x1,055mm

  4. Net weight; 220kg

  5. Matched power models/EY28B

  6. Power: 4.05kW

  7. Speed: 1,800rpm

  8. Main drive type/belt transmission

  9. Clutch type: tensioning wheel

  10. Driving wheel type/rubber wheel 19-90-8

  11. Moving knife type/standard IV type

  12. Moving knife quantity: 9pcs

  13. Cutting height: ≥80-150mm

  14. Binder binding mode/automatic mechanical

  15. Bale diameter: ≥80mm

  16. Laying form: horizontal

  17. Power connection/direct connection type

  18. Binding height: 270mm

  19. Working line: 2

  20. Working width: 600mm

  21. Working speed: 1.4-3.8km/h

  22. Hour productivity: ≧0.12m2/h



Self-propelled Reaper and Binder Combine Harvester Main Export Markets:


  • Asia

  • Central/South America

  • Mid East/Africa

  • North America

  • Western Europe


Self-propelled Reaper and Binder Combine Harvester Payment Details:


  • Minimum Order:0
